Welding Table DXF & Blueprints

📦 Instant digital download • DXF + PDF files • Licensed for classroom/personal use, not for resale

Welding Table DXF Files & Blueprints – Ready to Cut!

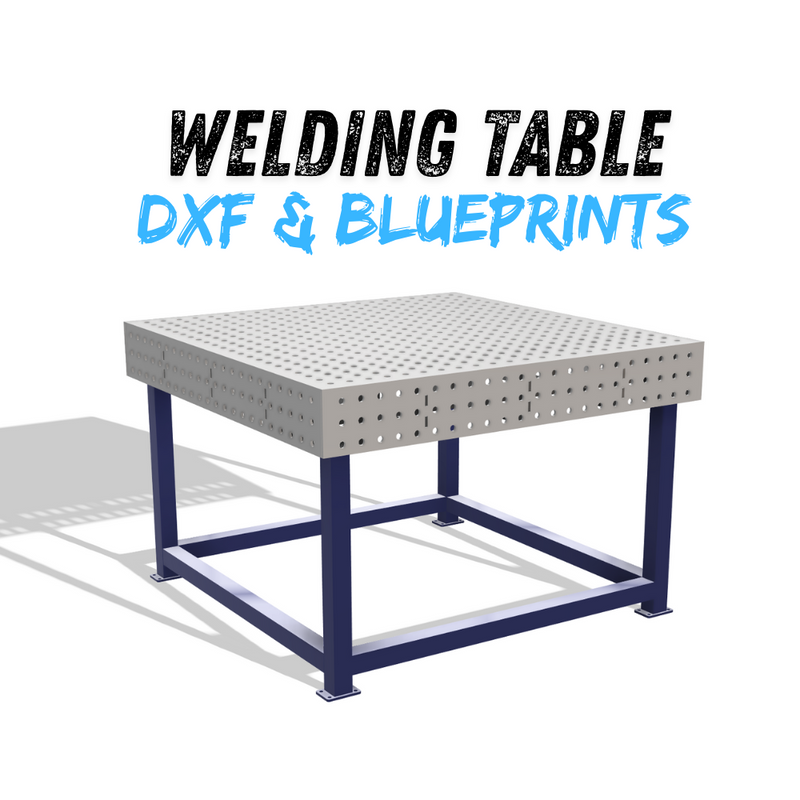

Take your fabrication setup to the next level with this 46" x 46" Welding Table DXF & Blueprint Package—ready to cut on a CNC plasma table and designed for fabricators, welding students, and DIYers alike. This all-in-one digital package makes it easy to cut and assemble a professional-grade welding table using just two standard 4' x 8' x 1/4" steel sheets.

What’s Included:
DXF File – CNC-ready and optimized for easy cutting from two 4’ x 8’ x 1/4” mild steel sheets.
Scaled Blueprints – Detailed, dimensioned plans for precise fabrication and assembly.
Materials List – Complete list of required materials, including plate steel and square tubing.

Welding Table Features:
46” x 46” Work Surface – Designed to maximize standard CNC table capacities while providing ample workspace.
2” On-Center Hole Pattern – Holes spaced 2” apart for jigs, clamps, and fixtures.
5/8” Diameter Holes – Compatible with standard clamping tools.
Interlocking Slat System – Slats slot together for easy assembly and structural strength.
Caster-Ready Plates – Designed for easy assembly by adding caster-ready plates. Specific casters are linked in the Materials List.

Why Choose This Package?
Save hours of design time and get straight to fabrication. Whether you're a professional welder, advanced DIYer, or a welding instructor, this ready-to-cut package streamlines your project workflow. Just load the DXF onto your CNC plasma table, cut your parts, and assemble using the scaled blueprints.

Made in the USA.

This is a digital product only. No physical items will be shipped.
