Texas Octagon Fire Pit DXF & Blueprints

Texas Octagon Fire Pit DXF & Blueprints - Ready to Cut

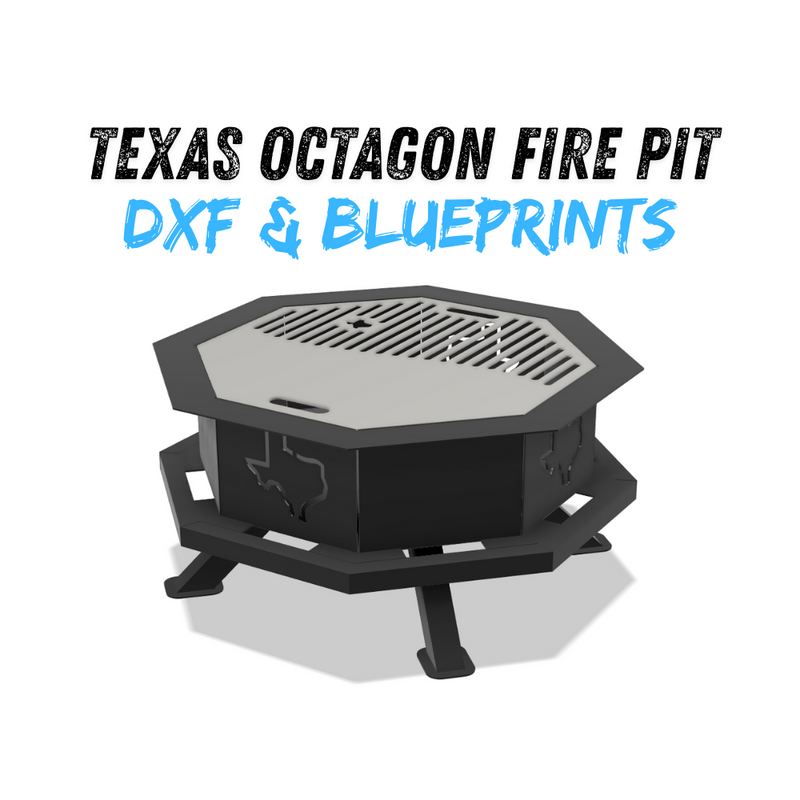

Ready-to-Cut Texas Octagon Fire Pit Project, specifically designed for CNC plasma cutting. This project offers a detailed, high-quality fire pit with an inside diameter of 28", excluding the top border. A removable grill top is included in the design to enhance the outdoor experience. Perfect for hobbyists, professionals, educators, and students, the package includes everything you need for successful fabrication and assembly.

What’s Included:
- DXF Files – CNC-ready files optimized for plasma or laser cutting.
- Scaled Blueprints – Detailed fabrication drawings with dimensions and assembly layout.
- Materials List – Suggested steel thicknesses and material recommendations.

Key features:
Grill Top: The grill top to this designs allows for a regular spot to grill one one side, as well as a Blackstone style grill on the other!
Dimensions: The inside main fire pit portion measures 28" with 9" sides. The sides are designed to be cut out from the sheet attached to the bottom of the pit, and can easily bent into position. The whole project easily fits within a 4' x 8' metal sheet for efficient cutting.

Designed for both ease of use and precision, this Texas Octagon Fire Pit project is framed and prepared for immediate cutting on your CNC plasma table. Whether you're looking for a fun DIY challenge or need a functional fire pit, this project delivers outstanding results with minimal hassle.

This is a digital product only. No physical item will be shipped.

Proudly designed in the USA.
