Smoker with Santa Maria Grill DXF & Blueprints
Smoker with Santa Maria Grill DXF & Blueprints – Ready to Cut!

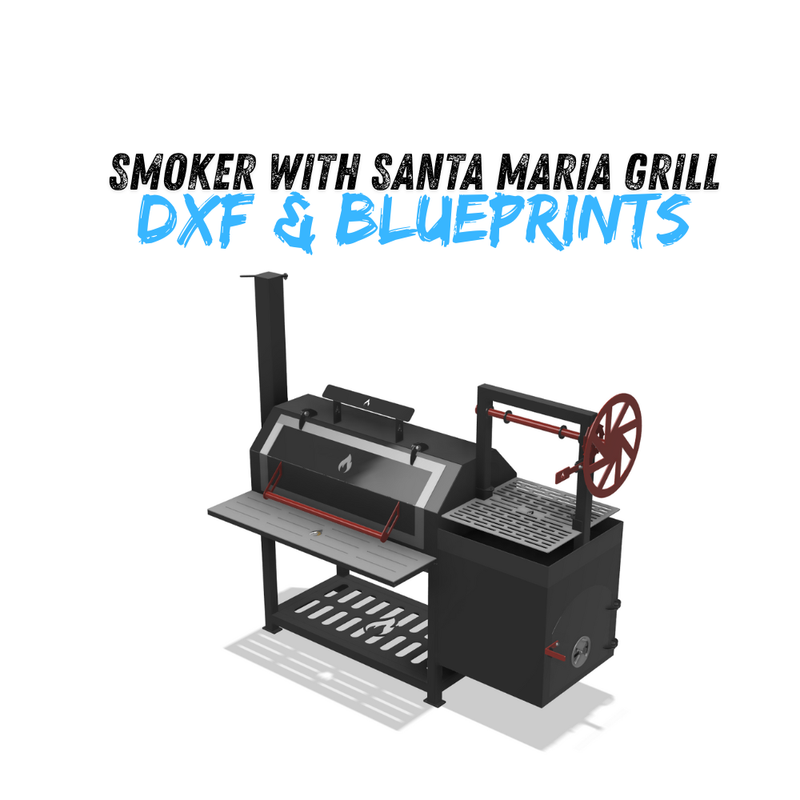

Take your fabrication project to the next level with this complete digital package. Designed for fabricators, hobbyists, and welding students, this Smoker with Santa Maria Grill DXF & Blueprint Package provides everything needed to cut the parts on a CNC plasma or laser table and build a professional-quality smoker at home, in your shop, or in the classroom.
This design includes a fully integrated Santa Maria Grill featuring a functional pawl-and-ratchet lift mechanism. The system allows smooth and secure grate height adjustment, giving you precise control over cooking temperatures. Every part is optimized for accurate cutting and straightforward assembly.
Dimensions:
2' Wide
4' Length
24" x 24" Santa Maria Grill
What’s Included:
DXF File: Ready-to-cut files for CNC plasma or laser tables, optimized for 4’ x 8’ x 3/16” mild steel sheets. (Requires 4 sheets.)
SVG Files: Flexible format for various cutting software applications.
Blueprints: Detailed, scaled drawings covering all smoker and Santa Maria components.
Materials List: Includes sheet metal, angle iron, square tubing, pipe specifications, plus a link to compatible casters.
DXF Highlights:
• Full smoker chamber paired with a dedicated Santa Maria grill.
• Pawl-and-ratchet mechanism for controlled and secure grate lifting.
• Grates included for the main smoker chamber, firebox, and Santa Maria area.
• Front work shelf and lower storage shelf included in the design.
• Custom hinges, vents, and handle components designed for smooth function.
• Caster-ready mounting plates built into the base structure.
Why Choose This Package?
Save time and eliminate guesswork with ready-to-cut DXF files and detailed blueprints. Whether you are a welder, advanced DIY builder, or a student learning fabrication skills, this package provides a complete project from start to finish. Simply load the DXF file into your CNC software, cut the pieces, and follow the blueprints for assembly.
This project is also an excellent fit for welding instructors. Students gain hands-on experience in fabrication, fit-up, welding, and assembly while building a functional smoker with a mechanical lift system. The Santa Maria Grill adds an engaging, real-world engineering component to the lesson.
This is a digital product only. No physical items will be shipped.
Proudly designed in the USA.
