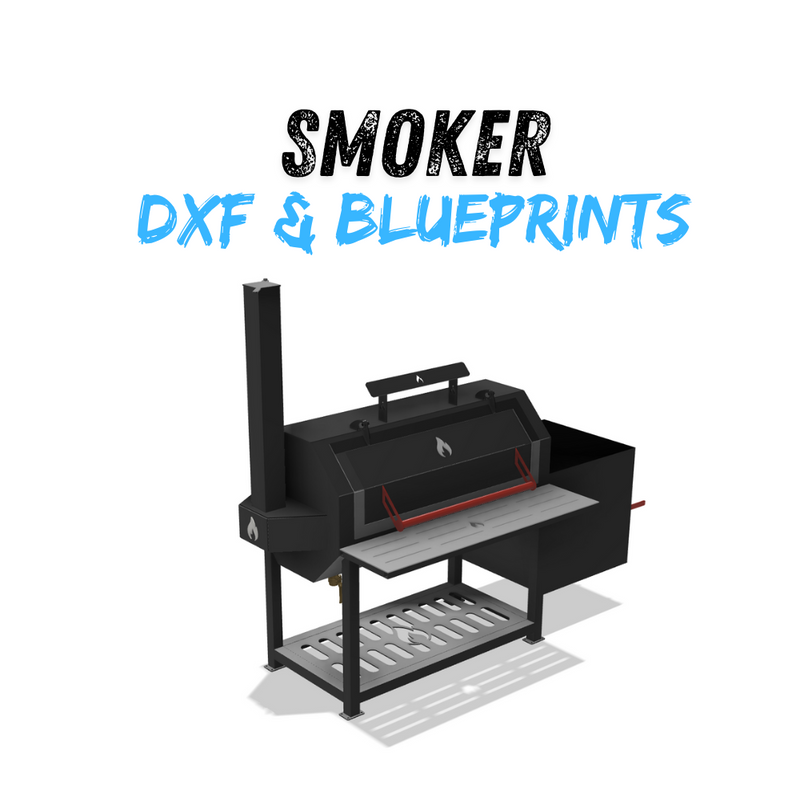

Smoker DXF & Blueprints

Smoker DXF Files & Blueprints - Ready to Cut!

Take your DIY smoker project to the next level with this comprehensive digital package! Designed for experienced fabricators, hobbyists, and welding students, this Smoker DXF & Blueprint Package includes everything you need to cut out the parts with a CNC plasma or laser cutter, and create a high-quality smoker right at home or in the classroom.

What’s Included:
DXF File: Ready-to-cut file for CNC plasma tables, optimized for 4’ x 8’ x 3/16” metal sheets (requires 4 sheets).
Blueprints: Detailed, scaled blueprints for precise fabrication and assembly.
Materials List: Includes all required materials, from sheet metal to angle iron, square tubing, and pipe—plus a link to compatible casters for easy mobility.

DXF Highlights:
Integrated Grates: Includes 2 grates in the main smoker chamber and 1 in the firebox.
Built-In Shelving: A bottom shelf is included for extra storage.
Hinges & Vents: Precision-designed components for easy installation and functionality.
Caster-Ready Plates: Designed to fit casters directly, making your smoker mobile and versatile.

Why Choose This Package?
Save time and hassle by using our pre-designed DXF files and blueprints! Whether you’re an experienced welder, an advanced DIYer, or a student, this digital package provides the tools you need to fabricate and assemble a professional-grade smoker. Simply load the DXF file onto your CNC plasma table, cut the parts, and follow the detailed blueprints for assembly. This package is an excellent resource for welding instructors and students looking for hands-on projects. The detailed blueprints and ready-to-cut DXF file make it easy to teach critical skills like fabrication, assembly, and welding. Your class will gain valuable experience while creating a functional and impressive smoker.

Attention: This is a digital product only. No physical items will be shipped.

Proudly made in the USA.
