Build a professional-grade, heavy-duty steel shop table with this Shop Table DXF & Blueprint package. This project is designed for CNC plasma or laser cutting and is ideal for fabrication shops, welders, ag mechanics programs, welding classes, and serious DIY builders who want a rock-solid work surface that’s also mobile.

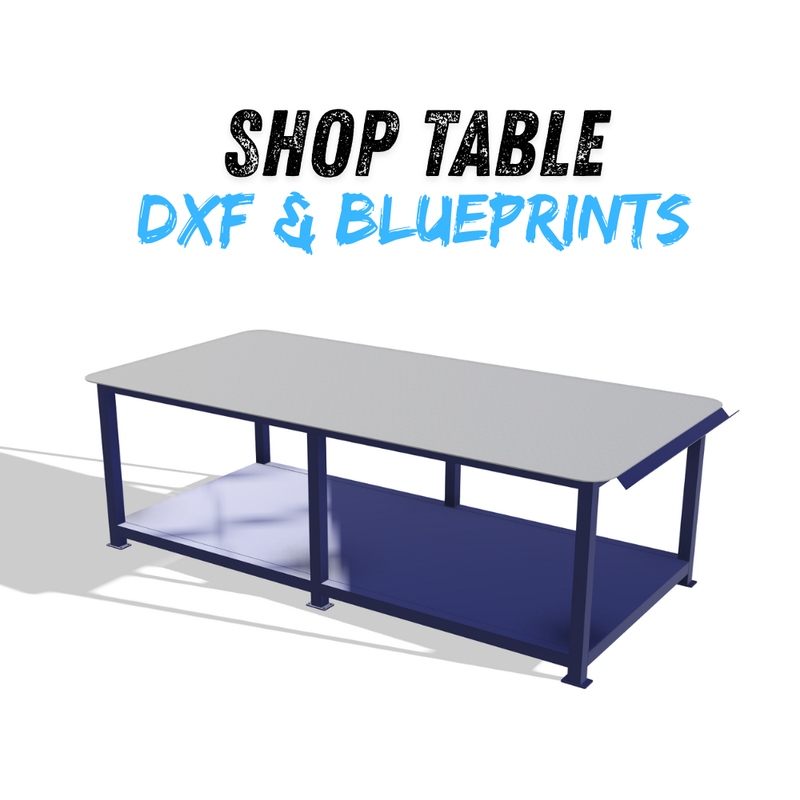

The tabletop measures 47" x 95", specifically sized so it can be cut from a standard 48" x 96" steel sheet with minimal waste. The frame is 30" tall, making the finished table approximately 36" tall once casters are installed.
This table is designed to be a true workhorse for fabrication, welding, fitting, and general shop use.
What’s Included:
- DXF Files – CNC-ready files optimized for plasma or laser cutting.
- Scaled Blueprints – Clean, detailed drawings with precise measurements for easy assembly.
- Materials List – Suggested steel materials and quantities.
Key Features:
- Tabletop size of 47" x 95" designed to come from a 48" x 96" steel sheet.
- Heavy-duty steel construction built for real shop use.
- Caster-ready plates for easy mobility (casters not included).
- Frame height is 30", resulting in approximately 36" working height with casters installed.
- Angle iron side designed for working with and fitting pipe.
- Rounded tabletop corners for improved safety in the shop.
This table is designed to be a long-term, everyday-use shop fixture that can handle serious work while still being mobile and versatile. Excellent project for teaching CNC cutting, layout, fit-up, welding, and finishing. Perfect for fabrication shops, ag mechanics programs, welding classes, makerspaces, or personal shops.
Why Choose This Package?
This complete digital package removes the guesswork from designing and laying out a heavy-duty steel shop table. Everything is already sized, aligned, and optimized for CNC cutting. You get professional files, clear blueprints, and a materials list so you can skip the heavy planning and go straight to cutting and welding.
This is a digital product only. No physical item will be shipped.
Proudly designed in the USA.
