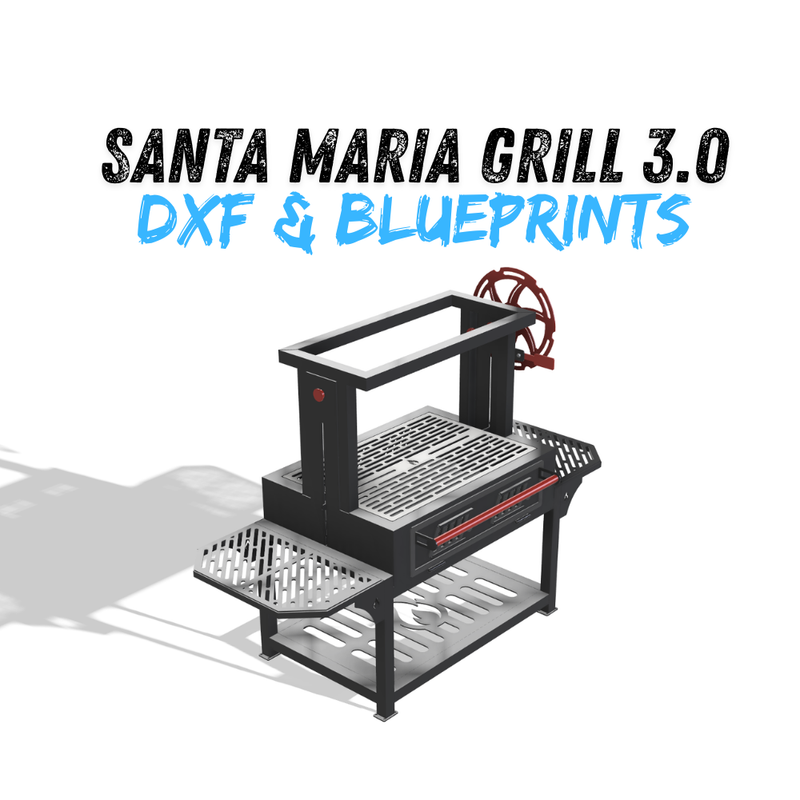

Santa Maria Grill 3.0 DXF & Blueprints

Santa Maria Grill 3.0 DXF & Blueprints – Ready to Cut

Bring premium craftsmanship and professional fabrication to your shop with the Santa Maria Grill 3.0 digital package. Featuring ready-to-cut CNC files for plasma and laser cutting, this heavy-duty Santa Maria grill combines classic open-fire cooking with modern fabrication techniques. With an adjustable cooking grate, precision air vents, a firebox access door, side shelves, and a rugged welded frame, this complete fabrication package is perfect for fabricators, DIY builders, welding students, and ag mechanics programs looking to build a professional-quality Santa Maria grill.

Dimensions:
24" x 36" cooking surface

What's Included:
- DXF Files – CNC-ready files optimized for plasma or laser cutting.
- Scaled Blueprints – Clean, detailed drawings with precise measurements for easy assembly.
- Materials List – Suggested steel materials, fasteners, and quantities.
- Assembly Instructions – Step-by-step illustrated guide covering the complete build.
- Cut List – Complete list of all tubing, pipe, rod, angle iron, and steel components with exact lengths, angles, and quantities.

Key Features:
- Adjustable Lift System – Raise or lower the cooking grate to precisely control cooking temperatures and achieve perfect results over wood or charcoal.
- Pawl & Ratchet Locking Mechanism – Securely locks the cooking grate at your desired height while providing smooth, dependable adjustment.
- Stable Lift Design – Integrated guide tracks eliminate grate sway and keep the cooking surface perfectly level while raising or lowering.
- Heavy-Duty Firebox – Designed for charcoal or wood-fired cooking with excellent durability.
- Front Access Door – Makes ash removal and cleanup fast and simple.
- Five Adjustable Air Vents – Two front and three rear sliding vents provide excellent airflow control for temperature management.
- Precision Cut Cooking Grate – Custom slotted grate provides excellent heat distribution while showcasing a clean, modern appearance.
- Large Side Shelves – Plasma or laser-cut prep shelves on both sides provide additional workspace while grilling.
- Lower Storage Shelf – Convenient storage for wood, charcoal, or grilling accessories.
- Professional Details – Decorative flame accents, custom cut shelves, and premium styling throughout.
- Caster-Ready Plates – Designed for easy installation of casters to make your grill mobile and versatile.

Why Choose This Package?

This isn't just a DXF file—it's a complete fabrication package.

Every component has been designed to streamline the building process. From the detailed cut list and fully dimensioned blueprints to the illustrated assembly guide, you'll have everything needed to confidently fabricate a premium Santa Maria grill. Whether you're an experienced fabricator or building your first grill, these files eliminate the guesswork and help produce consistent, professional results.

Whether you're building one for yourself or producing multiple units for resale, the Santa Maria Grill 3.0 offers a premium design that combines professional appearance, durability, and functionality.

This is a digital product only. No physical product will be shipped.

Proudly designed in the USA.
