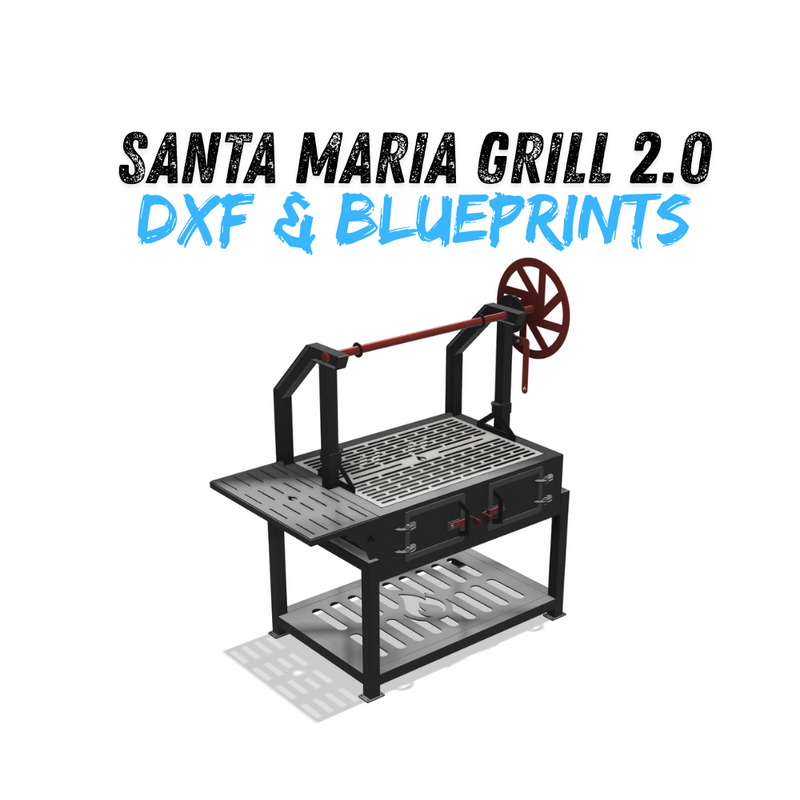

Santa Maria Grill 2.0 DXF Files & Blueprints – Ready to Cut!
Take your outdoor cooking game to the next level with this all-in-one digital package! Designed for experienced fabricators, hobbyists, and welding students, the Santa Maria Grill 2.0 DXF & Blueprint Package includes everything you need to cut out parts with a CNC plasma or laser cutter and build a high-quality, fully functional grill right at home or in the classroom.
What’s Included:
DXF File – Ready-to-cut file for CNC plasma tables, optimized for 4’ x 8’ x 3/16” metal sheets (requires 2 sheets).
Blueprints – Highly detailed, scaled blueprints for precision fabrication and assembly.
Materials List – Includes all required materials, from sheet metal to square tubing, bolts, and pipe—plus a link to compatible casters for easy mobility.
DXF Highlights:
Adjustable Grill Grate – Features a pawl and ratchet locking mechanism for precise height control over the fire.
Hinges & Vents – Precision-designed components included for optimal airflow and functionality.
Caster-Ready Plates – Designed for easy installation of casters to make your grill mobile and versatile.
Heavy-Duty Construction – Built for durability, with all components optimized for strength and performance.
Grate Dimensions: 24" x 36"
Why Choose This Package?
Save time and hassle by using our pre-designed DXF files and blueprints! Whether you’re an experienced welder, an advanced DIYer, or a student, this digital package provides the tools you need to fabricate and assemble a professional-grade Santa Maria grill. Simply load the DXF file onto your CNC plasma table, cut the parts, and follow the detailed blueprints for assembly.
This package is an excellent resource for welding instructors and students looking for hands-on projects. The pawl and ratchet locking mechanism teaches key fabrication skills, while the hinges, vents, and caster-ready plates provide valuable experience in precision welding and assembly.
Made in the USA.
This is a digital product only. No physical items will be shipped.
