Round Hose Hanger Reel DXF File – CNC, Plasma, or Laser Cut Ready

Keep your air hoses, extension cords, and welding leads neatly stored with this Round Hose Hanger Reel DXF File. This easy-to-build wall-mounted design helps you organize your shop or trailer while saving valuable workspace. Designed for CNC plasma, laser, or router cutting, it assembles quickly and looks great in any professional or home shop.

🔩 Product Features:

• Heavy-duty design for air hoses, extension cords, or welding leads

• Wide reel arms support large-diameter coils without kinks

• Clean, tab-and-slot construction for easy welding or bolting

• Pre-drilled mounting holes for secure wall installation

• Optimized for 14–12 gauge steel or aluminum

• DXF file is clean and properly layered for instant cutting—no cleanup required

⚙️ Specifications:

• File Type: DXF (digital download)

• Recommended Material: 14–12 gauge

• Assembly: Weld together or Fold and Forget

• Mounting Type: Wall-mounted

• Reel Width: ~6” (scalable in CAD/CAM)

📂 What’s Included:

• 1 DXF file – cut-ready and layered

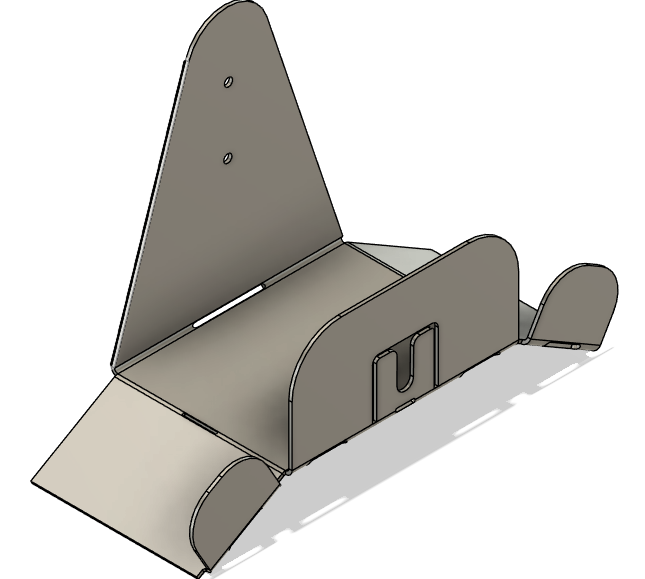

• 1 Preview image of assembled model

💡 Perfect For:

Fabrication shops, welding trailers, garages, or anyone who wants to organize hoses and cords with a clean, professional look.

Digital Download Only – No physical item will be shipped.
Need help or have questions? Contact us anytime at info@tradecrafteducation.com
