Rectangular Fire Pit DXF & Blueprints – CNC Ready!

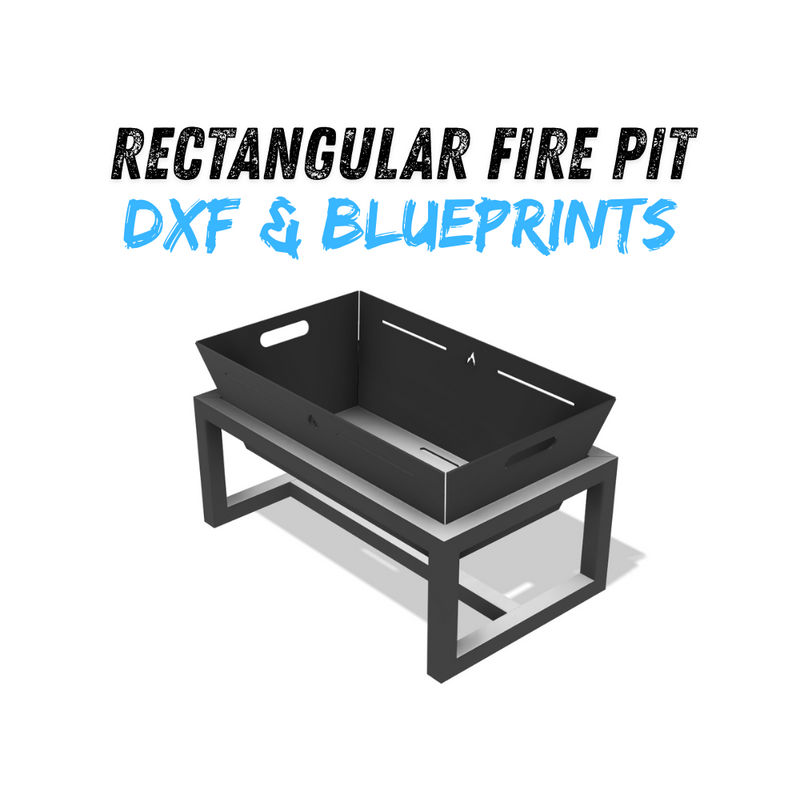

Build a sleek, modern fire pit with this easy-to-follow digital package—perfect for fabricators, DIYers, welding instructors, and students looking for a compact yet professional-grade project. Designed for efficiency and style, this rectangular fire pit sits on a sturdy stand and is cut from a single 4’ x 4’ x 3/16” sheet of steel.

What’s Included:

DXF File – CNC-ready for plasma or laser cutting, optimized for one 4’ x 4’ x 3/16” sheet.
Scaled Blueprints – Detailed and dimensioned drawings for accurate fabrication and welding.
Materials List – Complete list of required materials, including plate steel and square tubing.

DXF Highlights:
Compact Footprint – 12” x 24” fire pit body, ideal for patios, campsites, or backyard entertaining.
Modern Design – Rectangular shape with clean lines and ergonomic side handles for portability.
Sturdy Welded Base – Provides excellent airflow and stability while lifting the fire off the ground.
Precision Fit-Up – All parts are designed for clean welds and efficient assembly.

Why Choose This Package?
Whether you’re teaching welding, adding a new item to your fabrication lineup, or looking for a unique backyard project, this rectangular fire pit offers a simple yet rewarding build. It’s optimized for fast cutting and minimal waste, all while giving you a polished, functional final product.

This is a digital download only. No physical items will be shipped.

Made in the USA.
