Quinn Bar Top Table Project Plans

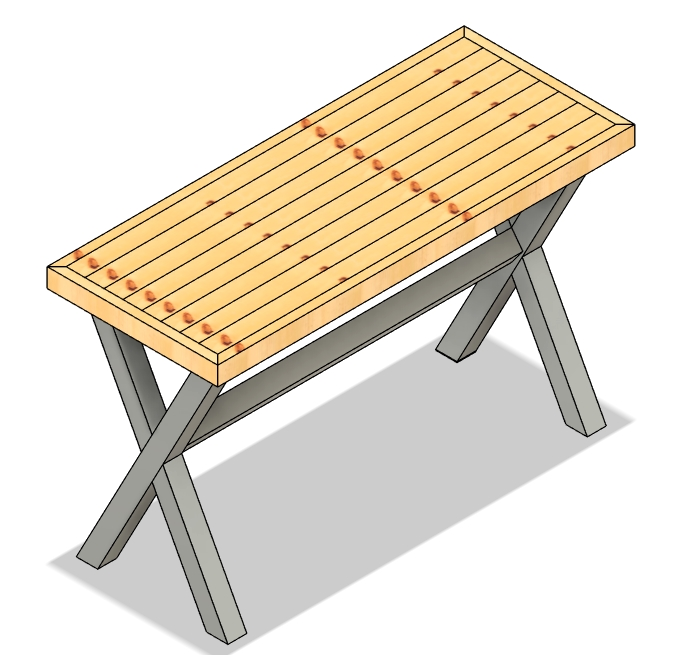

Quinn Bar Top Table

Product Number TC03

The Quinn Bar Top Table project is a full-scale fabrication build designed for classroom instruction. Measuring approximately 66” x 27” x 42”, this project challenges students to apply precision fabrication techniques while constructing a sleek, elevated table suitable for both indoor and outdoor use.

Project Highlights:

• Comprehensive Skill Application – Reinforces accurate measuring, layout, plasma cutting, fit-up, and MIG/TIG welding techniques.

• Angular Fabrication Practice – Exposes students to complex angles, bevels, and precision alignment.

• Tabletop Mounting System – Includes plate mounts and threaded levelers for a clean, professional finish.

• Mid-Scale Assembly – Promotes teamwork and careful sequencing while maintaining structural balance.

• Functional End Product – The finished bar top table is both stylish and practical, ideal for classrooms, patios, or event setups.

Included in this Package:

• Detailed Plans

• DXF Cut Files (ready for CNC plasma cutting)

• Cut List

• Tools & Materials Used

• Notes Sheet

This project is ideal for agricultural mechanics or welding courses, providing both instruction and a product students can showcase or sell.
