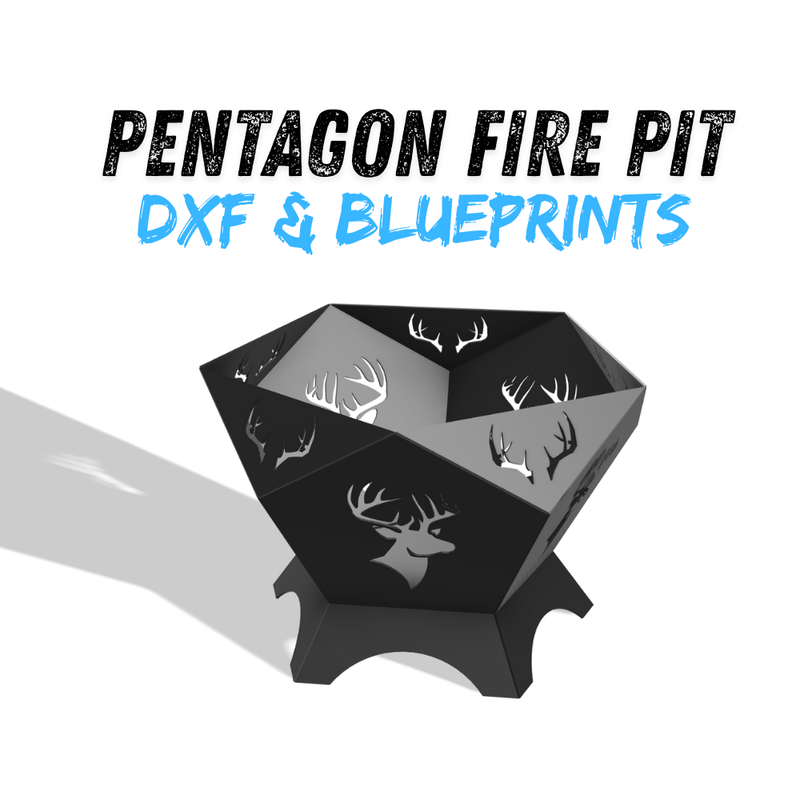

Pentagon Fire Pit DXF & Blueprints
Pentagon Fire Pit DXF & Blueprints – Ready to Cut
Bring bold design and fabrication efficiency to your backyard or shop with this Pentagon Fire Pit digital package. Engineered to be cut entirely from one 4' x 8' sheet of hot rolled steel, this CNC-ready project eliminates material waste while delivering a clean, modern geometric fire pit that is built to last. Perfect for fabricators, DIYers, welding students, and ag mechanics programs looking for a professional-quality build.
Dimensions:
Sized to be efficiently cut from one standard 4' x 8' sheet of 3/16" hot rolled steel. Final assembled dimensions create a balanced, heavy-duty backyard fire pit ideal for patios and outdoor spaces.
What’s Included:
DXF File – CNC-ready files optimized for plasma or laser cutting from standard mild steel sheet.
Scaled Blueprints – Clear, detailed, and dimensioned for precision fabrication.
Materials List – Complete inventory of all materials needed to fabricate this project.
Key Features:
Pentagon Design – A bold five-sided layout that stands out while maintaining structural strength and clean weld seams.
One-Sheet Construction – All components are precision nested to maximize material usage and minimize scrap.
Integrated Deer Head Cutouts – Each panel features a precision CNC-cut deer head silhouette, adding an outdoor-inspired touch that looks incredible when the fire is lit.
Durable Construction – Designed for 3/16" steel for long-lasting outdoor performance.
Show-Ready Project – Ideal for welding programs, fabrication competitions, or adding to your custom metal product lineup.
Why Choose This Package?
Skip the design hassle and get straight to cutting and building. With CNC-ready DXF files and full blueprints, this project is ideal for welders, students, or makers who want a repeatable, efficient fire pit design that looks great and performs even better. Perfect for backyard gatherings, resale, or expanding your fabrication offerings.
This is a digital product only. No physical product will be shipped.
Proudly designed in the USA.
