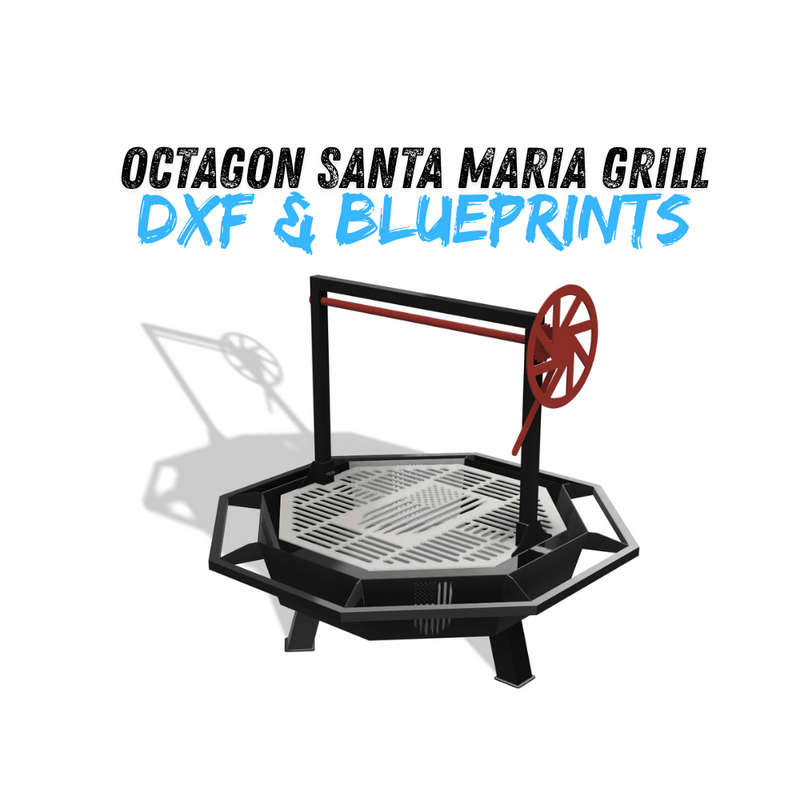

Octagon Santa Maria Grill DXF & Blueprints

Octagon Santa Maria Grill DXF Files & Blueprints – Ready to Cut

Take your outdoor cooking to the next level with this ready-made digital package! Designed for fabricators, hobbyists, and welding students, the Octagon Santa Maria Grill DXF & Blueprint Package includes everything you need to cut out parts using a CNC plasma or laser cutter and build a large, high-quality grill for your backyard, business, or classroom.

What’s Included:
DXF File – Ready-to-cut file for CNC plasma tables, framed to fit 4’ x 8’ x 3/16” metal sheets (requires at least 2 sheets).
Blueprints – Detailed, scaled blueprints for precise fabrication and assembly.
Materials List – Includes all required materials, from sheet metal to tubing, bolts, and optional casters.

DXF Highlights:
Massive Octagon Design – Finished grill measures 67.54” end to end for serious cooking space.
American Flag Cutout – Custom patriotic design incorporated into the grill’s structure.
Pawl & Ratchet Locking Mechanism – Allows precise grill grate height adjustments.
Jigsaw Edge Assembly – Select pieces feature jigsaw-style edges for faster, more accurate assembly.
Heavy-Duty Build – Optimized for strength, stability, and longevity.

Dimensions:
Grill surface is 46" in diameter. Overall length of project is 67.54"

Why Choose This Package?
Save time and eliminate design guesswork with this ready-to-build project! Whether you’re an experienced fabricator, advanced DIYer, or welding student, this digital package gives you everything needed to fabricate and assemble a professional-grade Octagon Santa Maria Grill. Simply load the DXF file onto your CNC plasma table, cut your parts, and utilize the included blueprints for assistance in assembly.

This project is ideal for welding classes, fabrication shops, and serious DIY enthusiasts. Special features like the pawl and ratchet system and jigsaw edges provide hands-on learning opportunities and improve assembly efficiency.

Made in the USA.

Attention: Digital product only. No physical items will be shipped.
