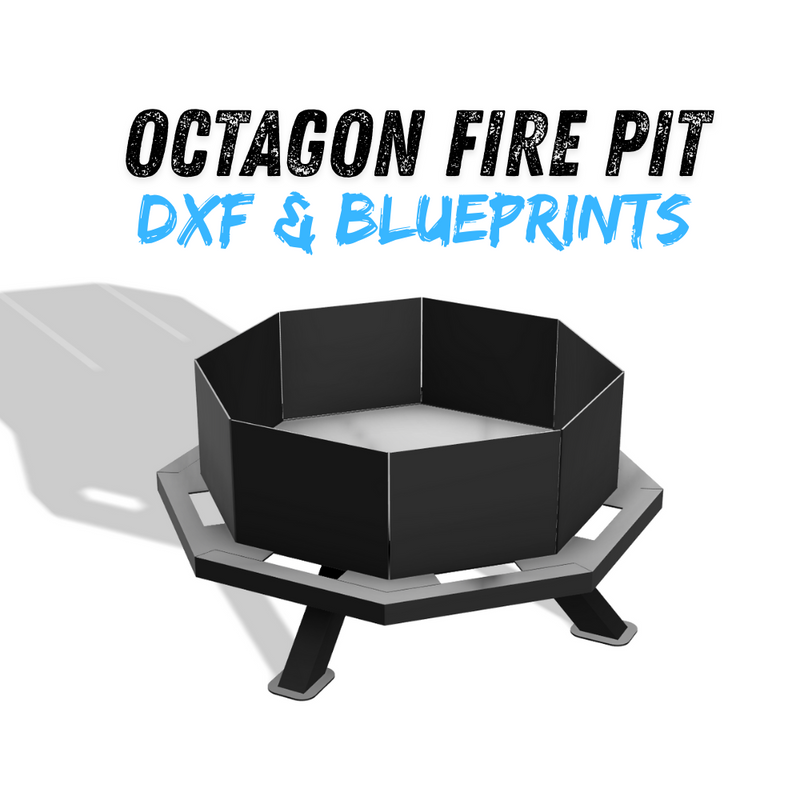

Octagon Fire Pit DXF & Blueprints

Octagon Fire Pit DXF & Blueprints – Ready to Cut

Ready-made DIY project for CNC plasma cutting. A scaled blueprint is included for assembly, a ready to cut DXF file, and a materials list. The file contains a frame of the dimensions of a sheet of metal 4' x 4'. All the details of the project are framed and ready for cutting on a CNC plasma table. The side panels are designed to easily fold into position for faster and more precise fabrication. Once folded, they can be quickly welded in place, reducing setup time and ensuring consistent angles during assembly.

What’s Included:

What’s Included:
- DXF Files – CNC-ready files optimized for plasma or laser cutting.
- Scaled Blueprints – Detailed fabrication drawings with dimensions and assembly layout.
- Materials List – Suggested steel thicknesses and material recommendations.

Dimensions: Inside diameter is 28".

Why Choose This Package?
Save hours of design time and get straight to fabrication. Whether you're a professional welder, advanced DIYer, or a welding instructor, this ready-to-cut package streamlines your project workflow. Just load the DXF onto your CNC plasma table, cut your parts, and assemble using the scaled blueprints.

Made in the USA.

Attention: This is a digital product only. No physical items will be shipped. Files are delivered via instant download.
