Jumping Jack Target DXF & Blueprints
Jumping Jack Target DXF & Blueprints – Ready to Cut
Take your next shooting target or fabrication project to the next level with this Jumping Jack Target DXF & Blueprint package. This professionally designed steel target creates a unique “jumping” and spinning action when hit, making it a fun and challenging target for shooting practice, range setups, ranch use, or backyard target courses.
Designed for CNC plasma or laser cutting, this compact target is easy to fabricate and requires minimal material while still providing a durable and reusable steel target design. The precision-cut interlocking pieces make assembly quick and straightforward for fabricators, welders, welding students, ag mechanics classes, and DIY hobbyists.

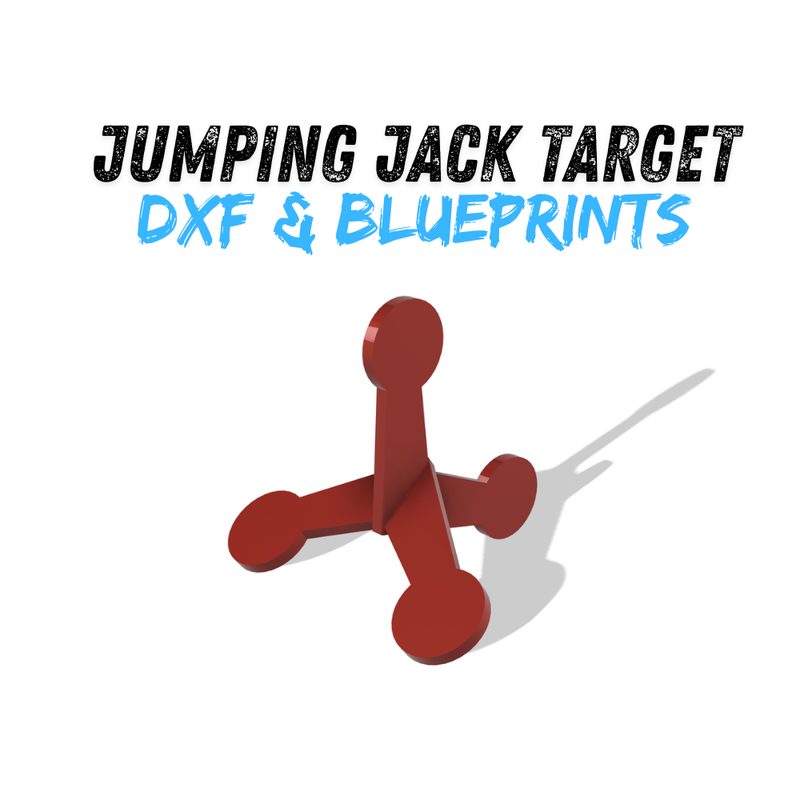

The completed target features a self-standing three-leg design that allows the target to react and move when struck, adding extra challenge and unpredictability compared to standard static targets.
Dimensions: Target sides are 9.25" in length. Target stands approximately 8" tall.
What’s Included:
- DXF Files – CNC-ready files optimized for plasma or laser cutting.
- Scaled Blueprints – Detailed fabrication drawings with dimensions and assembly layout.
- Materials List – Suggested steel thicknesses and material recommendations.
Key Features:
- Unique reactive target design that jumps and moves when hit.
- Compact design uses minimal material while remaining durable.
- Precision-cut interlocking parts for easy fit-up and welding.
- Excellent beginner or intermediate welding/fabrication project.
- Great for ag mechanics classes, welding booths, makerspaces, and fabrication shops.
- Ideal for target practice, ranch shooting ranges, or recreational shooting setups.
- Easy-to-transport self-standing design.
- Designed specifically for CNC plasma or laser cutting applications.
Why Choose This Package?
This complete digital package removes the guesswork from designing and laying out a reactive steel target. All parts are already sized and optimized for CNC cutting, saving fabrication time and improving assembly accuracy.
Perfect for welding classes, ag mechanics programs, fabrication shops, hobby welders, and small businesses looking to build durable steel targets quickly and efficiently.
This is a digital product only. No physical item will be shipped.
Proudly designed in the USA.
