Hog Shooting Target DXF & Blueprints

Hog Shooting Target DXF Files & Blueprints - Ready to Cut

Take your target practice to the next level with this comprehensive digital package! Designed for fabricators, shooting enthusiasts, and welding students, this Hog Shooting Target DXF & Blueprint Package includes everything you need to cut out the parts with a CNC plasma cutter and assemble a high-quality target for personal or range use.

What’s Included:
DXF File: Ready-to-cut file optimized for CNC plasma tables, designed to fit within a 4’ x 4’ metal sheet.
Blueprints: Detailed, scaled blueprints for precise fabrication and assembly.
Materials List: Includes all required materials for easy sourcing.
VCarve file: Not necessary for fabrication, but for added convenience for any desired changes for users with the software.

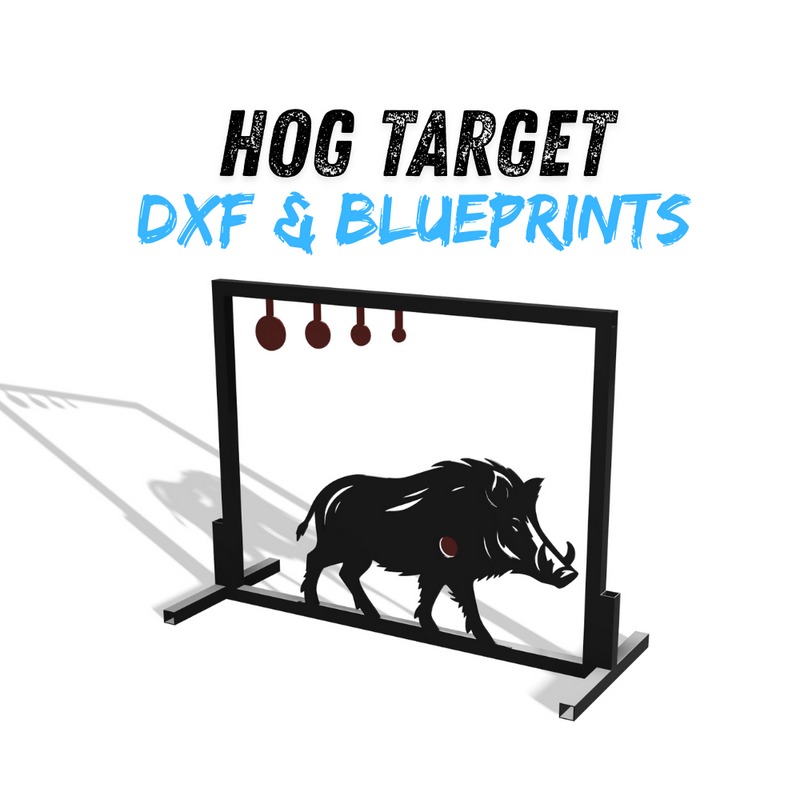

Rendered Images: High-quality visuals showing the completed design.

DXF Highlights:
Full-Size Hog Silhouette
Frame-Ready Design: Parts are arranged within a 4’ x 4’ layout for minimal waste.
Customizable Stand Compatibility: Easily integrate with your preferred stand or mounting system.

Dimensions: The target measures 4' x 5', excluding the stands, and fits within a 4' x 4' metal sheet for efficient cutting.

Why Choose This Package?
Save time and effort with pre-designed DXF files and blueprints! Whether you're a seasoned fabricator, an advanced DIYer, or a student learning welding and fabrication, this package provides everything needed to create a durable and professional-grade shooting target. Simply load the DXF file onto your CNC plasma table, cut the parts, and follow the included blueprints for quick and easy assembly.

This project is also a great resource for welding instructors looking for hands-on fabrication projects that teach essential skills. Download instantly and start cutting today!

Made in the USA.

This is a digital product only. No physical items will be shipped.
