Fire Tower DXF & Blueprints

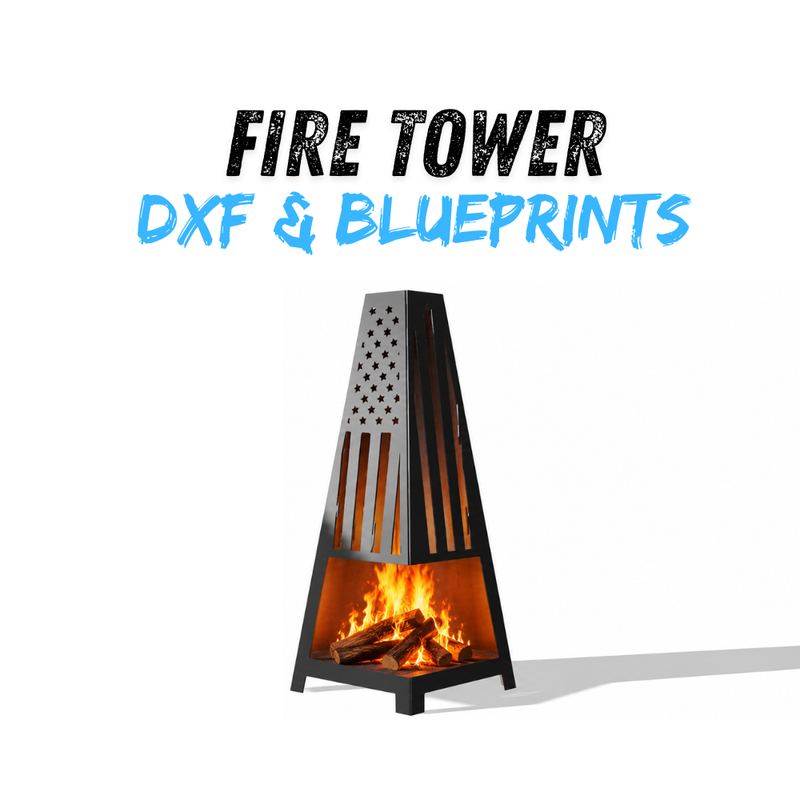

Bring premium craftsmanship and modern fabrication to your shop with the Fire Tower digital package. Featuring ready-to-cut CNC files for plasma and laser cutting, this unique fire tower combines a bold tapered design with an American flag-inspired silhouette that creates a stunning glow when a fire is burning inside. Designed for fabricators, DIY builders, welding students, ag mechanics programs, and small shops, this complete fabrication package provides everything needed to build a professional-quality outdoor fire feature.
Perfect for patios, backyards, ranches, cabins, or as a premium product for resale, the Fire Tower offers a clean modern appearance while delivering warmth, ambiance, and eye-catching nighttime illumination.
Dimensions
- Approximately 46" tall
- Approximately 19" x 19" footprint
What's Included
- DXF File — CNC-ready files optimized for plasma or laser cutting
- Scaled Blueprints — Clean, detailed drawings with precise measurements for easy assembly
- Materials List — Suggested steel materials and quantities
Key Features
- Distressed American Flag Design — Precision-cut stars and stripes create a dramatic illuminated effect when a fire is burning
- Open Firebox — Large front opening makes loading firewood quick and convenient
- Raised Fire Floor — Keeps the fire elevated for improved airflow and cleaner burning
- Heavy-Duty Steel Construction — Designed for years of outdoor use when fabricated from steel
- CNC-Friendly Design — Engineered specifically for plasma and laser cutting with easy-to-fabricate components
Why Choose This Package?
This isn't just a DXF file — it's a complete fabrication package. Every component has been carefully designed to simplify the building process. From the ready-to-cut CNC files and fully dimensioned blueprints to the material list, you'll have everything needed to confidently fabricate a premium fire tower. Whether you're an experienced fabricator or building your first fire feature, these files eliminate the guesswork and help produce consistent, professional results.
This is a digital product only. No physical product will be shipped.
Proudly designed in the USA.
