Collapsible Fire Pit and Grill DXF & Blueprints

📦 Instant digital download • DXF + PDF files • Licensed for classroom/personal use, not for resale

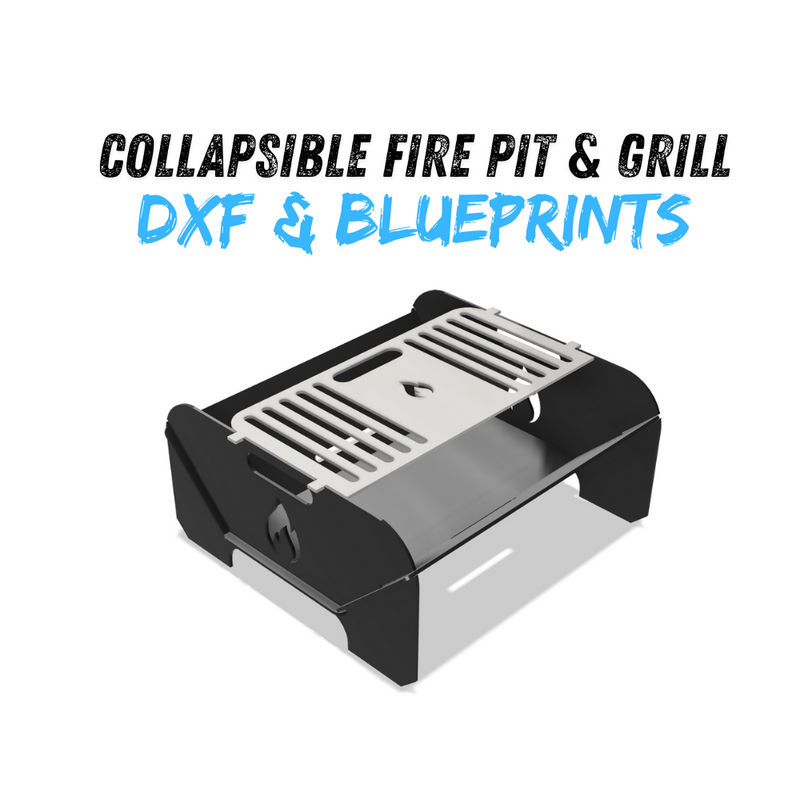

Collapsible Fire Pit & Grill DXF & Blueprints – Ready to Cut

Take your outdoor experience to the next level with this versatile Collapsible Fire Pit & Grill digital design package. Compact, rugged, and portable, this 20” x 20” x 10” fire pit is ideal for backyard barbecues, camping trips, tailgates, and fabrication classes. Designed for CNC plasma cutting from 3/16” mild steel, this project combines practical functionality with sleek design—perfect for DIY builders, welding students, and professional metal shops.

What’s Included:

DXF Files – CNC plasma-ready files designed to cut from a single 3/16” mild steel sheet.
Scaled Blueprints – Clear, dimensioned drawings for accurate fabrication and assembly.
Materials List – Full breakdown of needed materials, including steel dimensions and hardware.

Key Features:

Collapsible Design – Tabs and slots allow for easy assembly and disassembly—store it flat when not in use.
Dual-Purpose Functionality – Use it as a fire pit, a grill, or both with the optional cooking grate (design included).
Heavy-Duty Construction – Built from durable 3/16” mild steel for long-lasting performance in outdoor conditions.
CNC Precision – All components are designed to be CNC plasma cut for a clean fit and quick fabrication.

Why Choose This Package?
Whether you're building for personal use, classroom instruction, or resale, this digital package simplifies the process with ready-to-cut files and professional-grade plans. Save time, eliminate guesswork, and create a rugged, collapsible fire pit that’s built to last.

Ideal for welding instructors, makerspaces, fabrication shops, and weekend warriors looking to expand their portfolio with a portable grill/fire pit combo.

This is a digital product only. No physical items will be shipped.
