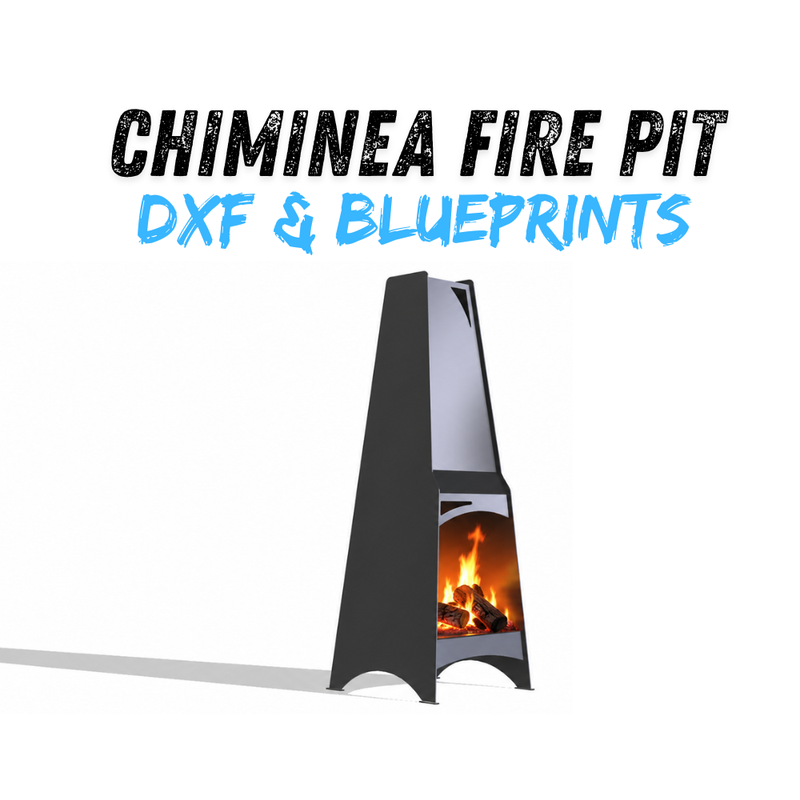

Chiminea Fire Pit DXF & Blueprints

Chiminea Fire Pit DXF & Blueprints – Ready to Cut

Bring warmth, style, and craftsmanship to your outdoor space with this Chiminea Fire Pit DXF & Blueprint package. This professionally designed steel chiminea combines the timeless appeal of a traditional outdoor fireplace with a modern fabricated steel design, creating a unique centerpiece for patios, backyards, outdoor kitchens, campsites, and entertainment areas.

Designed specifically for CNC plasma or laser cutting, this project features clean lines, simple fabrication, and an attractive tapered chimney that helps direct smoke upward while providing excellent airflow for efficient burning. The open-front firebox offers a clear view of the fire while the enclosed chimney design enhances both appearance and functionality.

The completed chiminea measures approximately 72" tall, 24" wide, and 26" deep, making it a substantial outdoor feature while still fitting comfortably on most patios and outdoor living spaces.

This project is designed to be cut from two sheets of 4' x 8' hot rolled steel, making material planning simple and straightforward for fabricators and hobbyists alike.

What’s Included:
DXF Files – CNC-ready files optimized for plasma or laser cutting.
Scaled Blueprints – Detailed fabrication drawings with dimensions and assembly layout.
Materials List – Suggested steel thicknesses and material recommendations.

Key Features:
- Modern steel chiminea design with a clean, contemporary appearance.
- Tall chimney helps direct smoke away from seating areas.
- Open-front firebox provides excellent fire visibility.
- Efficient airflow design promotes a strong, clean-burning fire.
- Precision-cut components for accurate fit-up and simplified assembly.
- Designed to utilize two standard 4' x 8' sheets of hot rolled steel.
- Excellent welding and fabrication project for all skill levels.
- Great addition to patios, outdoor living spaces, ranch properties, and campsites.
- Durable steel construction designed for years of outdoor use.
- Designed specifically for CNC plasma and laser cutting applications.

Why Choose This Package?
This complete digital package eliminates the time and effort required to design a chiminea from scratch. Every component has been professionally designed and prepared for CNC cutting, allowing you to focus on fabrication and assembly rather than layout and engineering.

Whether you're a fabrication shop looking to offer custom outdoor products, a welding instructor seeking a unique class project, or a DIY builder wanting a striking backyard fire feature, this package provides everything needed to get started.

This is a digital product only. No physical item will be shipped.

Proudly designed in the USA.
