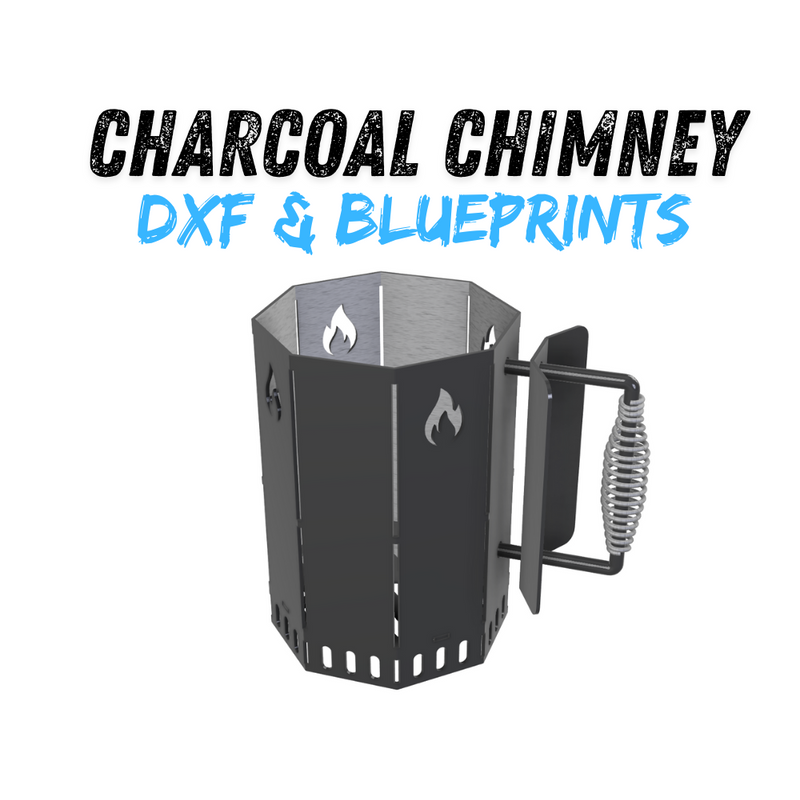

Charcoal Chimney DXF & Blueprints – Ready to Cut

Light your charcoal faster and more evenly with this Charcoal Chimney digital package! Designed for fabricators, DIYers, and welding students, this CNC plasma-cut-ready project gives you a professional-grade tool to add to your grilling setup.

Dimensions: 8” Octagon x 12” Tall

What’s Included:
DXF Files – CNC-ready files optimized for plasma or laser cutting from standard sheet steel.
Scaled Blueprints – Clear, detailed, and scaled plans for precise fabrication.
Materials List – Complete list including sheet steel, rod, and handle hardware.

Key Features:
Efficient Airflow Design – Strategically placed vents allow air to circulate freely, igniting charcoal quickly and evenly.
Built-In Heat Shield – Protects your hand from high temperatures when handling the chimney.
Durable Octagonal Body – Strong 8-sided design built to withstand repeated high-heat use.
Comfortable Handle – Easy to grip and designed for safe handling while in use.

How It Works:
Fill the top section with charcoal and place kindling underneath. The vented design channels airflow upward, rapidly heating and lighting the charcoal. Within minutes, you’ll have evenly lit coals ready to pour into your grill or smoker—without the need for lighter fluid.

Why Choose This Package?
Save time and effort with CNC-ready DXF files and detailed blueprints. Whether you’re a seasoned welder, hobbyist, or student looking for a practical shop project, this Charcoal Chimney Starter is both functional and rewarding to build. Perfect for backyard grilling, gifting, or adding to your product lineup for sale.

This is a digital product only. No physical product will be shipped.

Proudly designed in the USA.
