Bench Swing DXF & Blueprints

📦 Instant digital download • DXF + PDF files • Licensed for classroom/personal use, not for resale

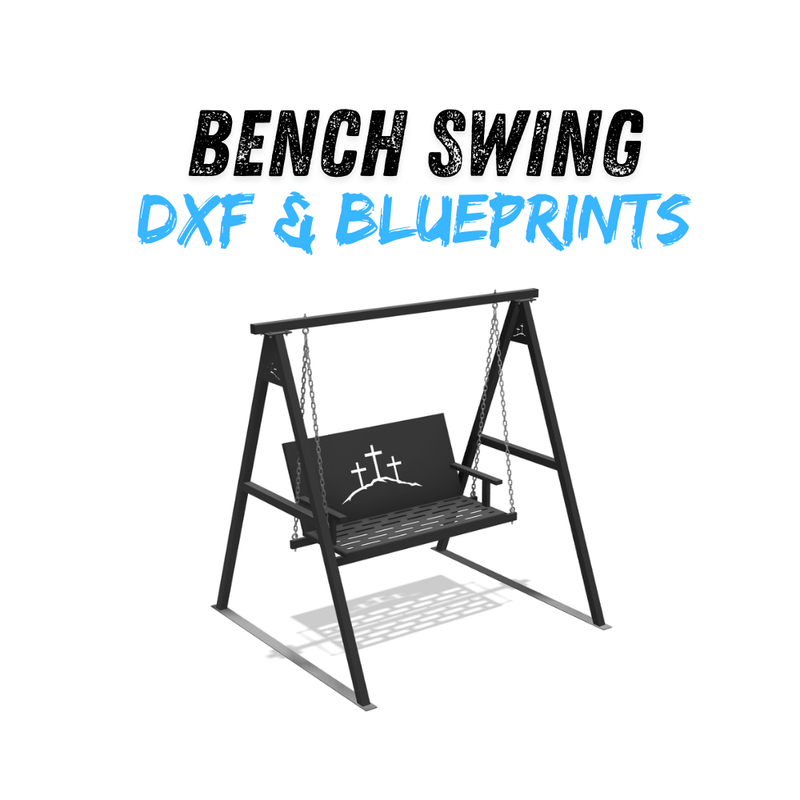

Create a standout addition to your porch, patio, or backyard with the Bench Swing digital package. Designed with ready-to-cut CNC files for plasma and laser cutting, this steel bench swing combines a clean, professional appearance with decorative three-cross accents. Featuring a freestanding A-frame stand, slotted steel seat, angled backrest, armrests, and chain suspension, this fabrication package is perfect for fabricators, DIY builders, welding students, and ag mechanics programs. The included blueprints and materials list provide the measurements and component details needed to build with confidence.

Dimensions

• Approximately 80" overall width
• Approximately 76" frame height
• 48" wide seat

What's Included

• DXF File — CNC-ready files optimized for plasma or laser cutting
• Scaled Blueprints — Detailed drawings with dimensions, tubing angles, connection details, and assembly views
• Materials List — Complete list of required steel, tubing, chain, and hardware

Key Features

• Freestanding A-Frame — Includes plans for the supporting stand, allowing placement without an existing overhead structure
• Steel Construction — A sturdy steel frame and coordinated metal components give the swing a clean, substantial appearance
• Decorative Three-Cross Design — Matching cutouts in the backrest and upper frame panels create a coordinated appearance
• Slotted Seat — CNC-cut slots allow water to drain through the seating surface
• Angled Backrest and Armrests — A thoughtfully shaped bench provides a relaxed seating position
• Bolted Frame Connections — Connection plates allow the frame to be disassembled for transport or storage
• Efficient Plate Layout — Plate components are designed around one 4' × 8' sheet of 11-gauge steel

Why Choose This Package?

Build a custom steel bench swing with a coordinated set of cutting files, fabrication drawings, and material requirements.

From the decorative panels to the tubing framework, this package brings the project details together in one place. Dimensioned drawings show how the components fit, while the materials list helps organize purchasing and preparation. Whether you're an experienced fabricator, a DIY builder, or a welding instructor looking for a practical welding project, this design combines CNC cutting, tubing fabrication, welding, and hardware assembly in a finished piece made for an outdoor setting.

This is a digital product only. No physical item will be shipped.

Proudly designed in the USA.
