Bench 2.0 DXF & Blueprints
Bench 2.0 DXF & Blueprints – Ready to Cut
Upgrade your shop projects with this Bench 2.0 Digital Package. Designed for fabricators, welders, DIY builders, and ag mechanics students, this CNC-ready project features a fully steel-constructed bench with every component cut from 3/16" steel using a CNC plasma table. This design offers unmatched precision, strength, and consistency—making it perfect for shop use, outdoor seating, patios, or classroom fabrication lessons.
This bench combines clean aesthetics with rugged durability, giving you a professional-grade finished product whether you're building for personal use or resale.
Dimensions:
4-Foot Bench (48" Width)
What’s Included
DXF Files – CNC-ready files optimized for plasma or laser cutting.
Scaled Blueprints – Detailed drawings with clean measurements for accurate fabrication.
Materials List – Suggested materials and quantities to simplify planning and fabrication.

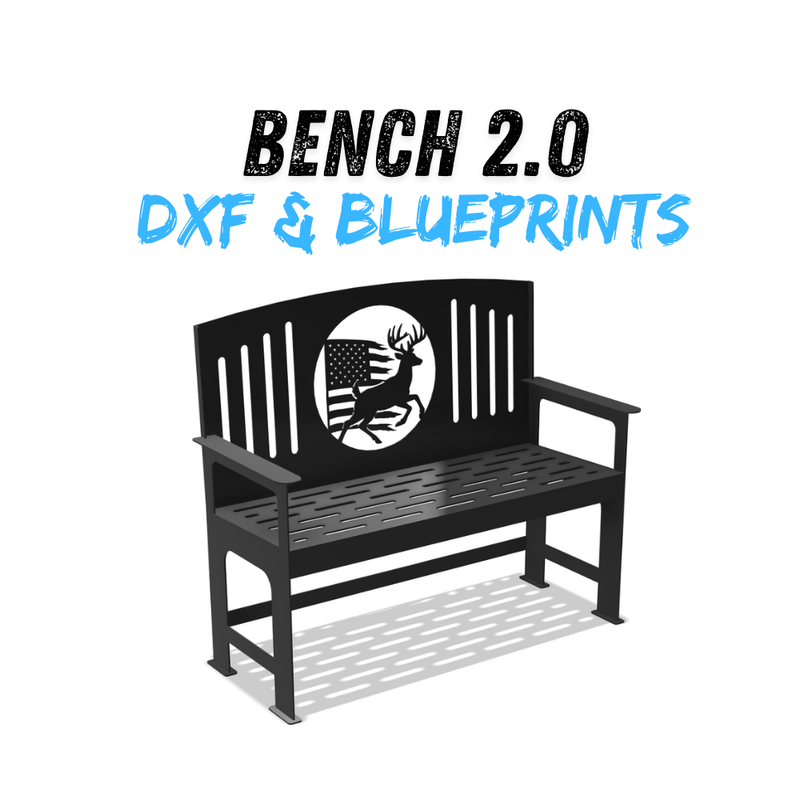

Rendered Images – High-quality visuals showing the completed Bench 2.0 design.
Key Features
- All components are cut using a CNC plasma table for exceptional accuracy and easy assembly.
- Constructed entirely from 3/16" steel for long-lasting strength and stability.
- Modern, clean design suitable for workshops, patios, porches, and commercial spaces.
- Excellent project for teaching cutting, fit-up, welding, and finishing skills.
- Ideal for beginners learning fabrication and advanced welders looking for a clean, profitable shop build.
Why Choose This Package?
This complete digital package removes the guesswork by providing CNC-ready files and detailed blueprints. It’s a highly functional fabrication project that helps builders practice precision cutting, welding techniques, and structural assembly—all while producing a heavy-duty steel bench that can be sold, showcased, or used daily.
Great for welding classes, fabrication shops, small business owners, and makers creating custom metal furniture.
This is a digital product only. No physical product will be shipped.
Proudly designed in the USA.
