Argentina Santa Maria Grill DXF & Blueprints

📦 Instant digital download • DXF + PDF files • Licensed for classroom/personal use, not for resale

Argentina Santa Maria Grill DXF, SVG Files & Blueprints – Ready to Cut

Elevate your outdoor cooking experience with this premium Argentina Santa Maria Grill digital package. Designed for fabricators, DIY enthusiasts, and welding students, this 24" x 48" grill features an adjustable-height grate with a pawl and ratchet system for precise fire control, perfect for authentic wood-fired grilling.

What’s Included:
DXF Files – CNC-ready files for plasma or laser cutting, optimized for 4’ x 8’ x 3/16” steel sheets (requires two sheets).
Scaled Blueprints – Highly detailed, scaled plans for precise fabrication and assembly.
Materials List – A complete breakdown of materials, including square tubing, bolts, pipe, and optional casters for mobility.

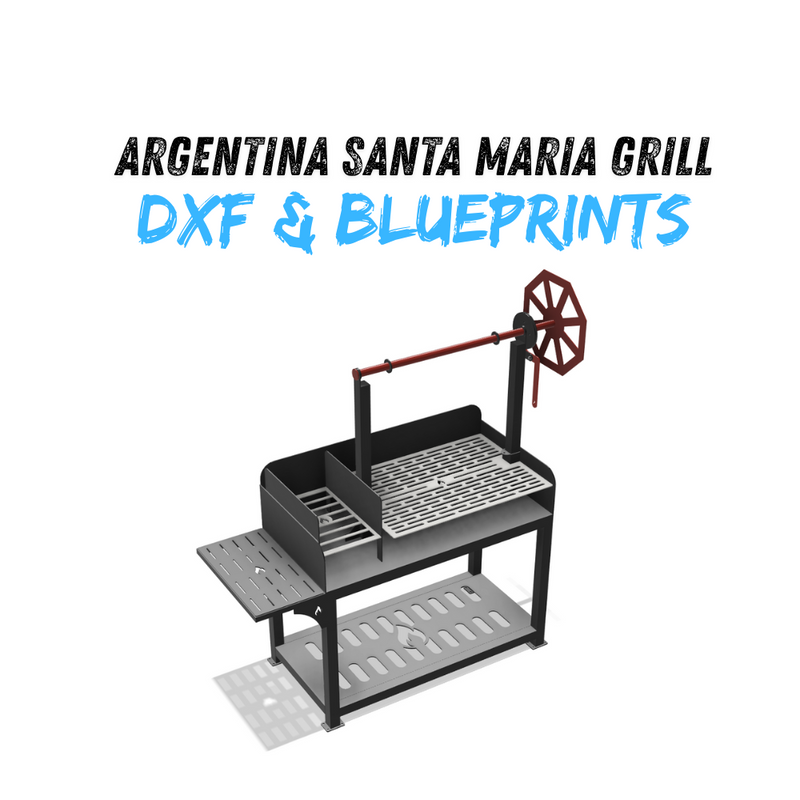

Rendered Images – High-quality visuals showing the finished design.

Dimensions: 24" x 48"

Key Features:
Adjustable Grill Grate – Pawl and ratchet mechanism allows for effortless height control.
Removable Fire Basket – Allows for coals to heat up separately and be moved under the grate as needed.
Heavy-Duty Construction – Engineered for durability and long-lasting performance.
Caster-Ready Plates – Designed for easy mobility (casters not included).

Why Choose This Package?
Save time and effort with ready-to-cut DXF and SVG files along with professional blueprints. Whether you're a seasoned welder or a student looking for a hands-on project, this package provides everything needed to build a high-performance Santa Maria grill.

Perfect for welding instructors, makerspaces, and DIY grill builders, this project helps develop essential fabrication skills while creating a functional, high-quality cooking setup.

This is a digital product only. No physical items will be shipped.

Made in the USA.
