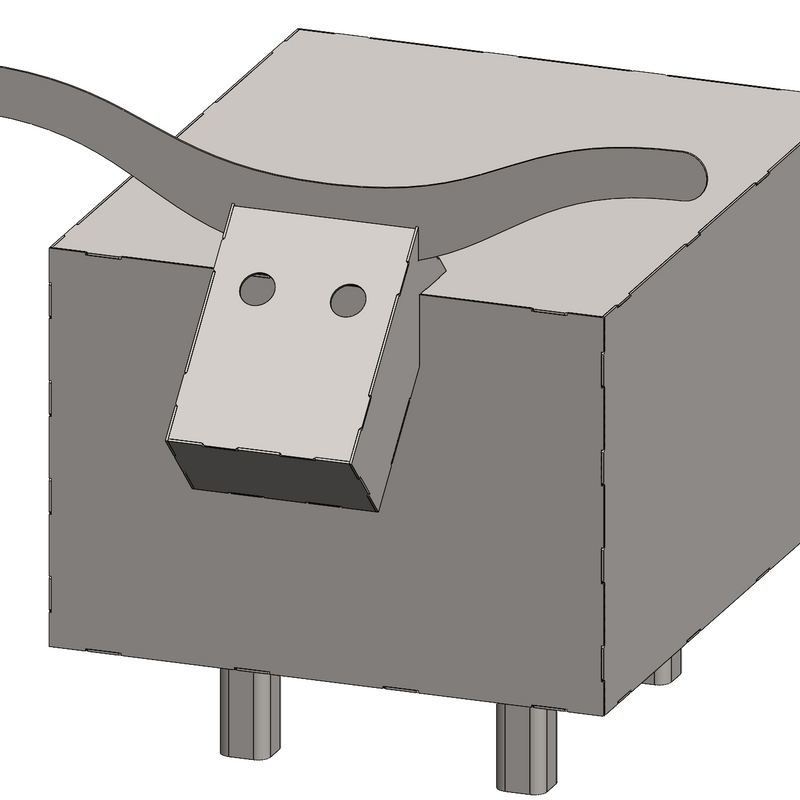

16 Gauge Steel Welded Cow Sculpture Plans

Build a detailed 14-inch welded cow sculpture with 16 gauge steel with these easy-to-use CNC and laser cutting plans! Designed specifically as an easy shop project, this flat-pack metal art kit features self-aligning tab-and-slot construction—the only fitment required is holding the flat parts at a 90-degree angle as you tack them together.  Easy to do with welding arrow magnets.

Just cut, interlock tabs at 90 degrees, and weld!

Included File Types:

DXF (Compatible with CNC plasma, laser, and waterjet software)

PDF (Printable drawing for shop reference and Bill of Materials)

Project Specifications

Finished Height: Approx. 14 inches

Material Thickness: Designed specifically for 16 Gauge (0.0598" / 1.52 mm) Steel

Assembly Type: Interlocking 90-degree tab-and-slot flat pack

Skill Level: Beginner / Educational / STEM Shop Class

Why You'll Love This Build

Zero Bending Required: Every component is completely flat. No press brakes, sheet metal benders, or hammer forming needed.

Effortless Assembly: The built-in tabs and slots act as their own fixture—just hold the parts square at 90 degrees and tack weld them into place.

Great Learning Tool: An ideal hands-on project for welding students, hobbyists, or anyone practicing basic joint alignment and tack welding.

Please Note
This listing is for a digital file package only. No physical product or metal cutouts will be shipped. You will receive an instant download link to the file package immediately upon purchase.

Terms of Use: These files are for personal use or small business batch production of physical items. Do not re-sell, share, or redistribute the digital files.
